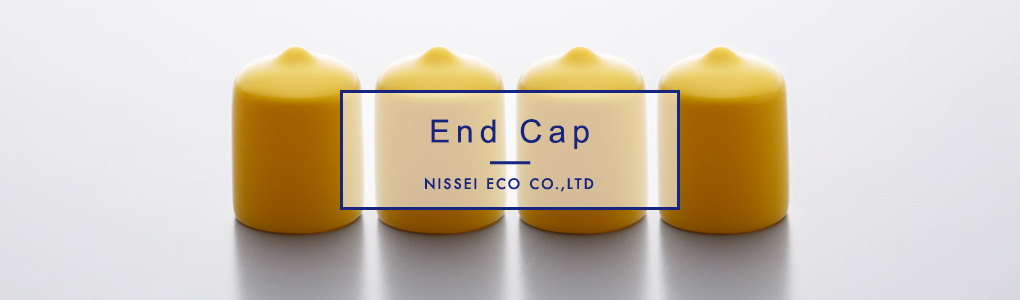

Fit On Everywhere, Vinyl Cap CS Series
Cap can be used for paint masking, dust proof, terminal protection, etc. The softness of soft vinyl chloride makes the caps easier to use. Also many of size is one of the features, we can make any inner diameter and length of caps.
Features of the product
- Can be used any different ways
- 9 standard colors, easy to define by different color
- Standard inner diameter from φ2 to φ50, over φ100 also possible
Main Purpose
- Cover bolts, nuts, etc during painting process.
- Dust proof inside the steel pipe
- Protect ends of wire mesh, steel wire, cable, protrusion of bolt, etc.
CS Cap Series Dimension Table
| Product Name | φD | L | t |
|---|---|---|---|
| CS-2 | 2 | 15 | 0.8 |
| CS-2.5 | 2.5 | 15 | 0.8 |
| CS-3 | 3 | 15 | 0.8 |
| CS-3.5 | 3.5 | 15 | 0.8 |
| CS-4 | 4 | 15 | 0.8 |
| CS4.5 | 4.5 | 15 | 0.8 |
| CS5 | 5 | 15 | 0.8 |
| CS-5.5 | 5.5 | 15 | 0.8 |
| CS-6 | 6 | 15 | 0.8 |
| CS-6.35 | 6.35 | 15 | 0.8 |
| CS-6.5 | 6.5 | 15 | 0.8 |
| CS-7 | 7 | 15 | 0.8 |
| CS-7.5 | 7.5 | 15 | 0.8 |
| CS-8 | 8 | 15 | 1 |
| CS-8.5 | 8.5 | 15 | 1 |
| CS-9 | 9 | 15 | 1 |
| CS-9.5 | 9.5 | 15 | 1 |
| CS-10 | 10 | 20 | 1 |
| CS-10.5 | 10.5 | 20 | 1 |
| CS-11 | 11 | 20 | 1 |
| CS-11.5 | 11.5 | 20 | 1 |
| CS-12 | 12 | 20 | 1.2 |
| CS-12.5 | 12.5 | 20 | 1.2 |
| CS-13 | 13 | 20 | 1.2 |
| CS-13.5 | 13.5 | 20 | 1.2 |
| CS-14 | 14 | 20 | 1.2 |
| CS-14.5 | 14.5 | 20 | 1.2 |
| CS-15 | 15 | 20 | 1.2 |
| CS-15.5 | 15.5 | 20 | 1.2 |
| CS-16 | 16 | 20 | 1.2 |
| CS-17 | 17 | 25 | 1.5 |
| CS-18 | 18 | 25 | 1.5 |
| CS-19 | 19 | 25 | 1.5 |
| CS-20 | 20 | 25 | 1.5 |
| CS-21 | 21 | 25 | 1.5 |
| CS-22 | 22 | 25 | 1.5 |
| CS-23 | 23 | 25 | 1.5 |
| CS-24 | 24 | 25 | 1.5 |
| CS-25 | 25 | 25 | 1.5 |
| CS-26 | 26 | 30 | 1.5 |
| CS-27 | 27 | 30 | 1.5 |
| CS-28 | 28 | 30 | 1.5 |
| CS-30 | 30 | 30 | 1.5 |
| CS-32 | 32 | 30 | 1.5 |
| CS-34 | 34 | 40 | 1.5 |
| CS-36 | 36 | 40 | 1.5 |
| CS-38 | 38 | 40 | 2 |
| CS-40 | 40 | 40 | 2 |
| CS-42 | 42 | 40 | 2 |
| CS-44 | 44 | 40 | 2 |
| CS-46 | 46 | 40 | 2 |
| CS-48 | 48 | 40 | 2 |
| CS-50 | 50 | 40 | 2 |
Nisseieco “ All In One” system of ”From molding to assembling”.
Molding, R&D, mold manufacturing, assembling.
To meet various customer’s needs, providing sample is possible.
