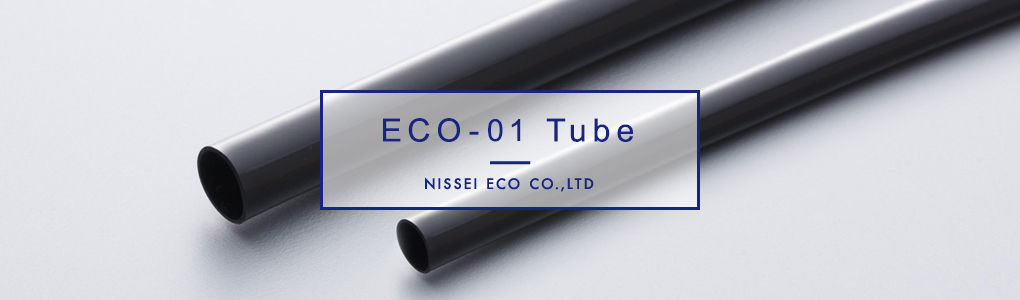

Halogen-free, PVC-free tube ECO-01

ECO-01チューブ

Marking;
UL ECO-01 VW-105℃ 300V E81260-F NISSEIECO
UL ECO-01 VW-105℃ 600V E81260-F NISSEIECO

The first PVC-free tube with low cost, UL224, VW-1 and F mark authentication.
The main materials are MPPE elastomer without Halogen or polymerization metal, RoHS compliant.
Multiple colors available.

ECO-01 Soft Tube Catalog
ECO-01 Tube Catalog

Purchase of ECO-01 Tube


UL224

UL224 authentication with temperature 105℃ and voltage 300V and 600V. Since it is possible with no cross-link, the cost is low and available in different fields.

VW-1、F Mark

Authentication No.E81260, F Mark(Electrical Appliance and Material Safety Law) compliant.
The most strict standard of fire resistant could be VW-1. It requires for tube will not burn more than 1 minute.

  • ECO-01チューブ
    (1)Burn 5 times in 15 seconds
  • ECO-01チューブ
    (2)Wait
  • ECO-01チューブ
    (3)Stop burning after 20 seconds (stop burning within 1 min)


Features of the product

  • Do not turn white
    The normal halogen-free tube will turn white when bend it, but ECO-01 tube.
  • ECO-01チューブ
    Third-party products: turn white
    ECO-01チューブ
    Eco-01


  • Abrasion Resistance
    The high abrasion resistance of ECO-01 is used for wiring which is required durability.
  • Abrasion Test
    1. Cut the tube with 1.35kg blade, 1 time per second.
    2. Measuring the number of seconds before the tube is torn and the tester is conductive.

    ECO-01チューブ
    Third-party products: Conductive after 9 seconds (Average value of 4 tests)
    ECO-01チューブ
    ECO-01: Conductive after 53 seconds (Average value of 4 tests)


  • Lightweight
    The proportion of weight is, PVC about 1.33 : ECO-01 about 1.06, ECO-01 is lighter than PVC
  • Low Cost
    Since cross-link is not required by ECO-01, the cost of ECO-01 is lower than our halogen-free tube with UL224 authentication.

Nisseieco “ All In One” system of ”From molding to assembling”.
Molding, R&D, mold manufacturing, assembling.
To meet various customer’s needs, providing sample is possible.
