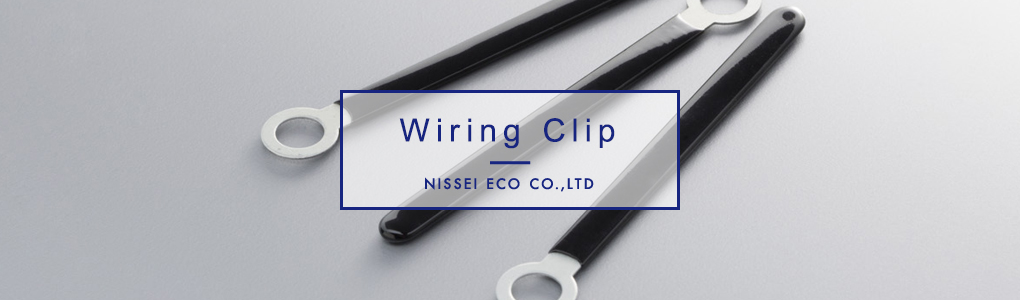

Stick tightly, bendable wiring clip

配線クリップ

Wiring clip is used PVC coating on thin metal. It is flexible to organize and fix the wiring. In order to make it easy to install at flame and chassis of machine. There are screw hole type and no hole type.

Purchase of wiring clip


Features of the product

  • Choosable length
  • Since it coat with metal directly, the adhesiveness is excellent
  • Coating with soft PVC, avoid metal to scratch the wiring
  • Avoid corrosion of metal.

Main Purposes

  • Electric appliances, wiring inside the chassis
  • Wiring inside the vending machine
  • Wiring of chassis of game device harness

Wiring clip Product List

SCL Series

SCL配線クリップ

PVC-free. Replace PVC with resin coating to protect shrinkable tube. Good for environment and wiring.


SCL Series Dimension Table

Part NumberΦDΦdWL
SCL-6303463234
SCL-6304863248
SCL-6325463.23.654
SCL-600546Without Hole3.654
SCL-6333963.33.039
SCL-8302883328
SCL-8336683.34.666
SCL-8353583.5535
SCL-8354083.5340
SCL-8416484.1564
SCL-800648Without Hole564
SCL-8452284.5322
SCL-8455484.54.854
SCL-8457684.54.576
SCL-800768Without Hole4.576
SCL-8458484.54.684
SCL-800848Without Hole4.684
SCL-84512684.56126
SCL-8001268Without Hole6126
SCL-9434594.3445
SCL-10005010Without Hole4.650
SCL-11006511Without Hole565
SCL-110012611Without Hole6126
SCL-117076117576

CL Series

CL配線クリップ

CL配線クリップ図面


CL Series Dimension Table

Product NameABCWL
CL630346324234
CL630486340248
CL6325463.2463.654
CL830288318328
CL8336683.3554.666
CL8353583.525535
CL8354083.530340
CL8416484.153564
CL800648Without Hole53564
CL8452284.512322
CL8455484.5424.854
CL8457684.5654.576
CL800768Without Hole654.576
CL8458484.5724.684
CL800848Without Hole724.684
CL84512684.51126126
CL8001268Without Hole1126126
CL9434594.335445
CL10005010Without Hole384.650
CL11006511Without Hole52565
CL110012611Without Hole1126126
CL11707611762576

TA Series

TA配線クリップ

TA配線クリップ図面


TA Series Dimension Table

Product NameABWL
TA-8892.118
TA-1414143.525
TA-19L1920440
